POCKETSAT ORION

The Ultimate Pocket-Sized IoT and Sensing Platform

A Complete Innovation Platform in Your Pocket

PocketSAT ORION combines sensing, communication, data logging, positioning, and interactive user interfaces into a single portable system. Whether developing connected devices, conducting field experiments, or exploring embedded technologies, PocketSAT ORION provides the tools to transform ideas into working solutions.

Discover

PocketSAT ORION

Small Form Factor. Powerful Possibilities.

Designed to Learn. Engineered to Experiment. Ready to Innovate.

  • GPS-enabled wireless telemetry and tracking platform
  • Interactive touch-controlled multi-sensor experimentation kit
  • Portable data acquisition and IoT development system
  • Payload-ready architecture for advanced STEM projects


ESP32 Processing

Dual-core computing for real-time embedded applications
Sensor Fusion


Environmental and motion sensing in one platform

Wireless Telemetry

GPS, Sub-GHz, Wi-Fi, and cloud connectivity
PocketSAT ORION Full Set
Rs. 2999
Pre-Order
PocketSAT
Payload Expansion

Provides dedicated interfaces for seamless integration of external sensors, actuators, and custom experiment payloads.

Touch Display

1.69-inch capacitive LCD with user interaction

Integrated Sensor Suite

9+ onboard sensors including IMU, pressure, temperature, light, humidity, VOC, and audio input.

IR Communication

Integrated infrared transmitter and receiver for wireless device communication and control applications.

The unique capabilities & advantages of PocketSAT ORION

Integrated Embedded Systems Architecture

Processing, sensing, communication, storage, and power systems unified on a single compact board.

Environmental & Motion Intelligence

Pressure, temperature, humidity, light, IMU, and air-quality sensing for real-world data acquisition.

Edge Data Processing

Wi-Fi, Bluetooth, GPS, and Sub-GHz communication technologies integrated into one platform.

Edge Intelligence Ready

ESP32 dual-core architecture enables local processing and event-driven decision logic.

Geospatial Data Awareness

GNSS-enabled positioning supports location-referenced measurements and mobility applications.

Portable Field Deployment

Compact low-power design optimized for mobile, outdoor, and remote experimentation.

Human-Machine Interaction Layer

Touch LCD, capacitive inputs, audio output, and haptic feedback enable direct device interaction.

Payload Expansion

Dedicated payload connector and exposed I/O pins allow rapid integration of external modules.

Long-Range Sub-GHz Data Communication

PocketSAT integrates a low-power Sub-GHz wireless transceiver engineered for reliable long-range communication in field and off-grid environments. Designed for extended deployments, it enables stable data transmission beyond traditional Wi-Fi or BLE limits—making it ideal for remote sensing, environmental monitoring, and distributed experiments.

With efficient power consumption and robust signal penetration, PocketSAT ensures continuous data flow even in challenging terrains where connectivity is typically constrained.

0 Km

LOS Range

Achieved a 95% customer satisfaction rate across all AI solutions.

< 0 mW

Power Consumption

Efficient transmission optimized for battery and solar operation

GNSS Positioning & Navigation

PocketSAT integrates a dedicated GNSS receiver that provides continuous location, velocity, and timing information for mobile experiments and field deployments. By combining positioning data with onboard sensor measurements, the platform enables geotagged data collection, route tracking, and location-aware analytics for real-world applications.

With onboard processing and synchronized logging, PocketSAT ensures every environmental change is captured, analyzed, and ready for actionable insights in both controlled and remote deployments.

GPS Enabled Tracking
Real-time positioning, route monitoring, and geospatial data collection
UTC-Synced Location Data
 High-precision measurements for reliable environmental analysis

Precision Motion & Orientation Tracking

PocketSAT integrates a high-accuracy 9-axis motion sensing system, combining accelerometer, gyroscope, and magnetometer to capture real-time movement, rotation, and directional data. Engineered for dynamic environments, it enables precise tracking for navigation, physics experiments, and motion analysis applications.

With synchronized sensor fusion and onboard processing, PocketSAT delivers stable, drift-reduced motion insights—ensuring reliable performance across both controlled setups and real-world deployments.

Sensor Fusion
0 Axis
Gyroscope and Accelerometer
0 Axis
PocketSAT ORION

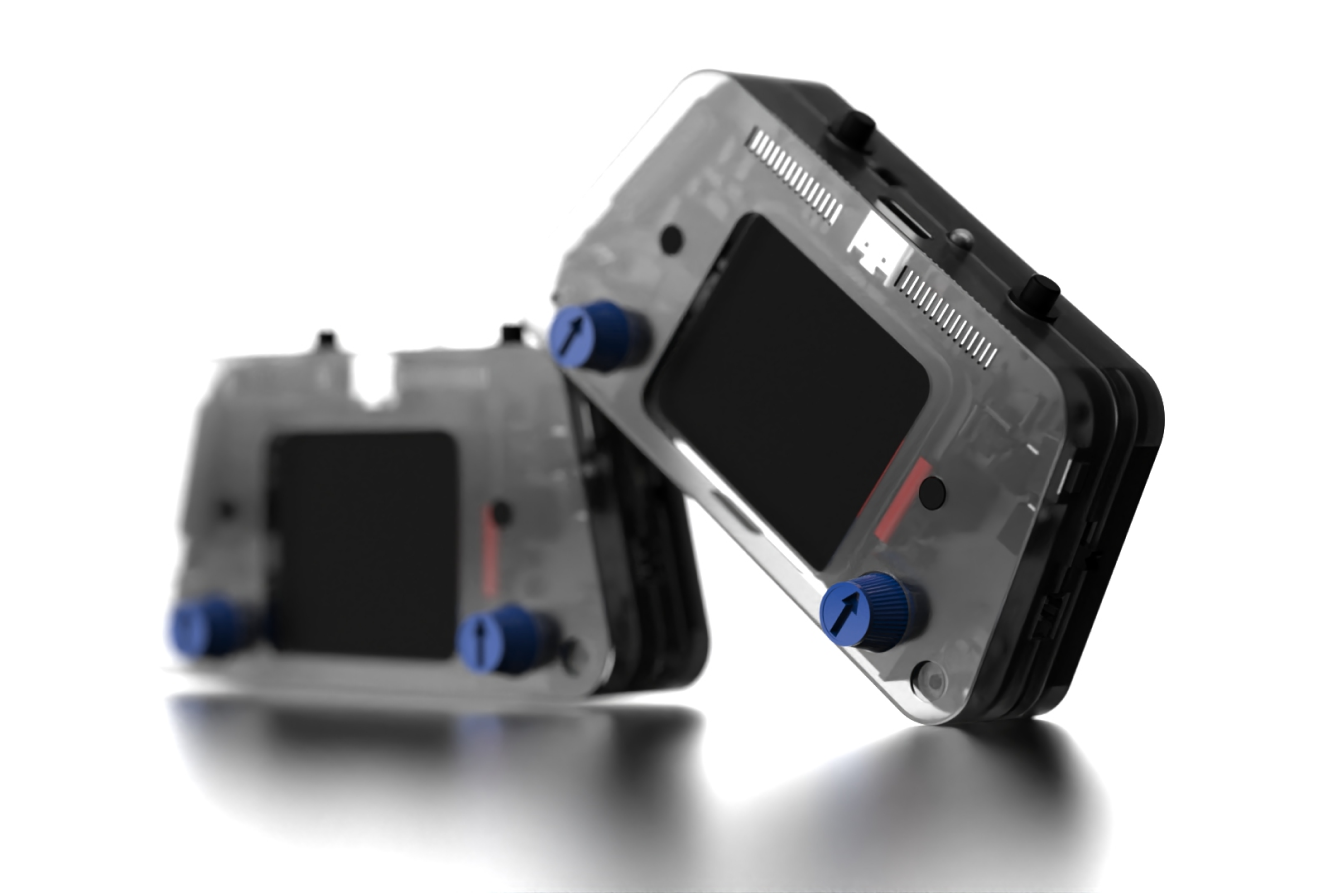

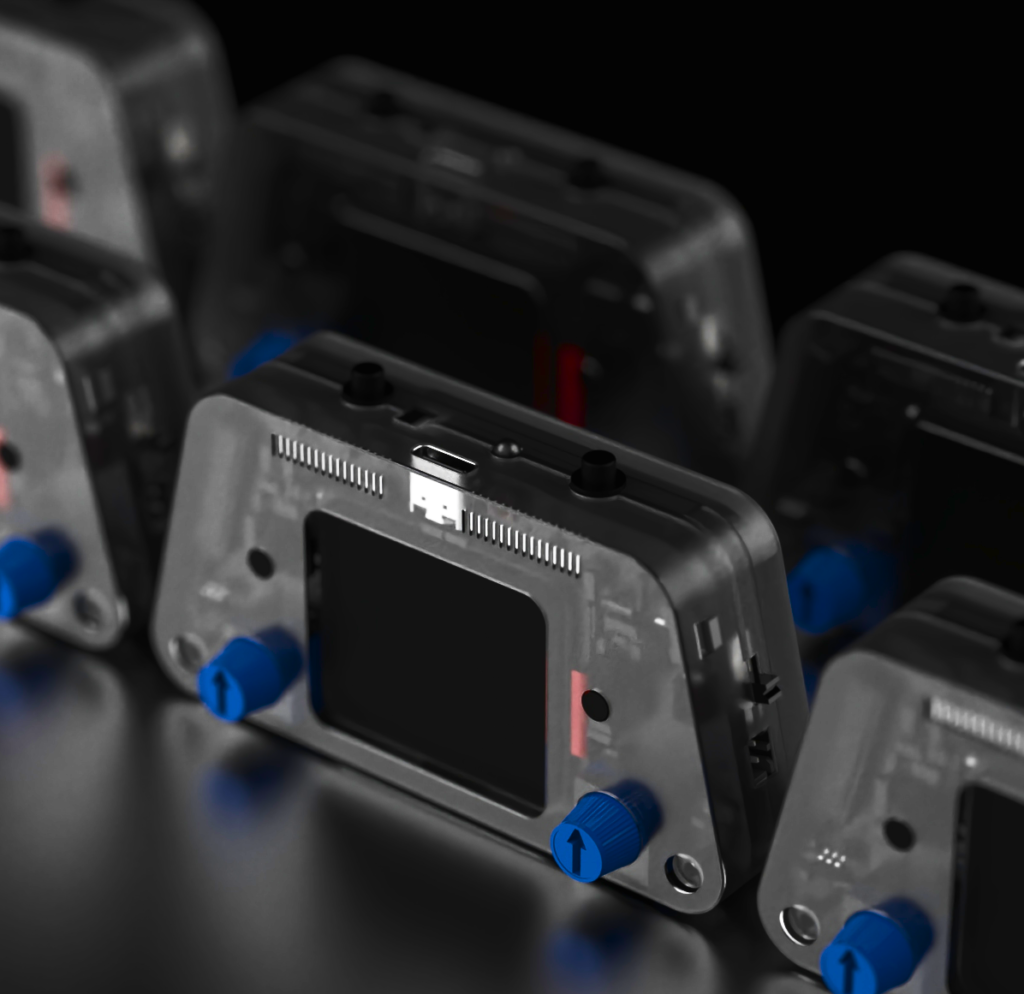

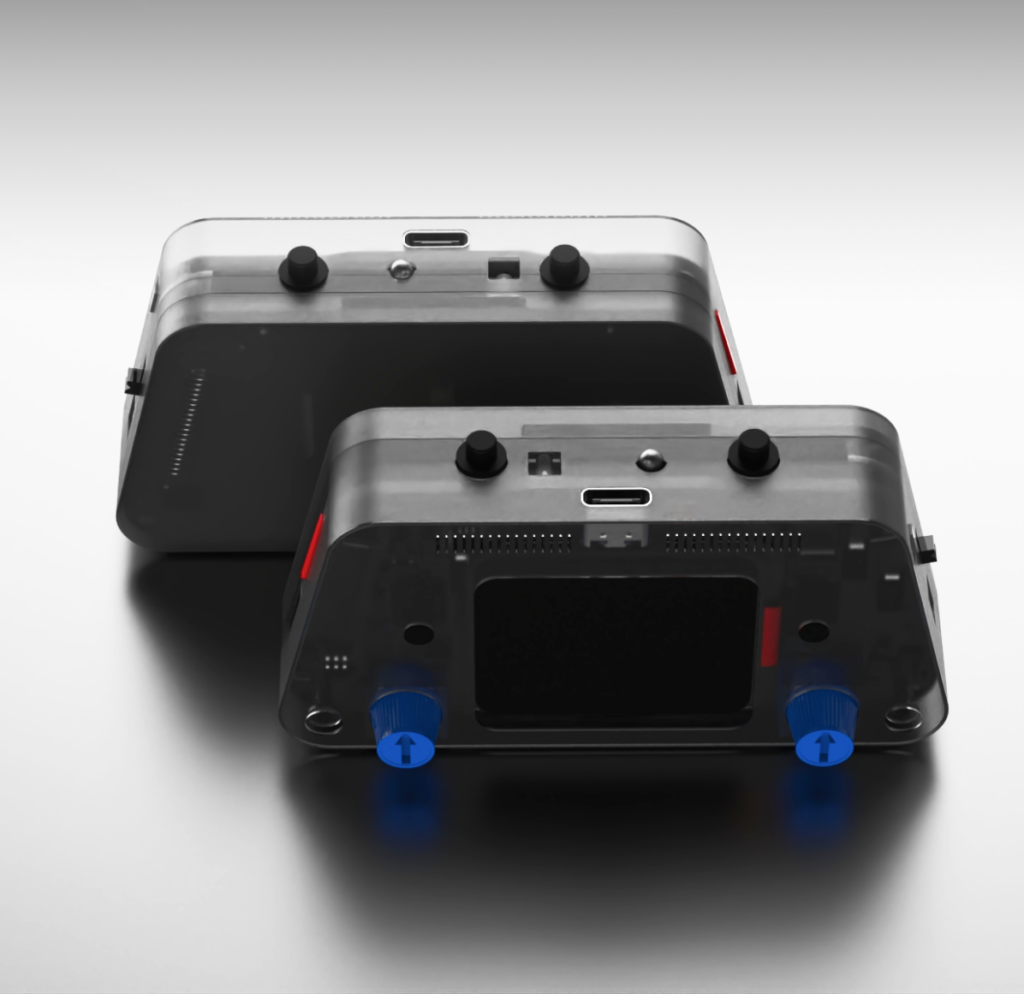

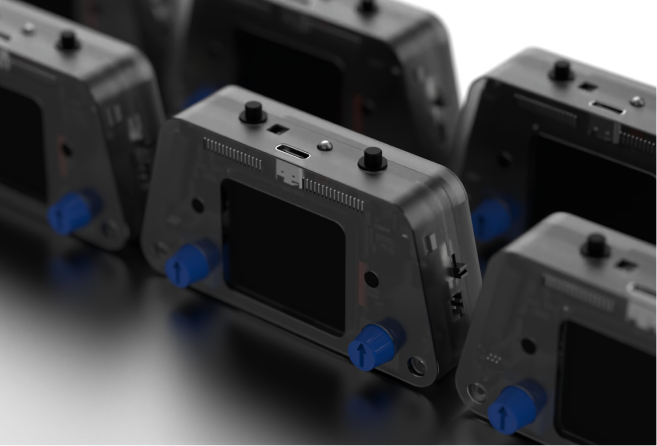

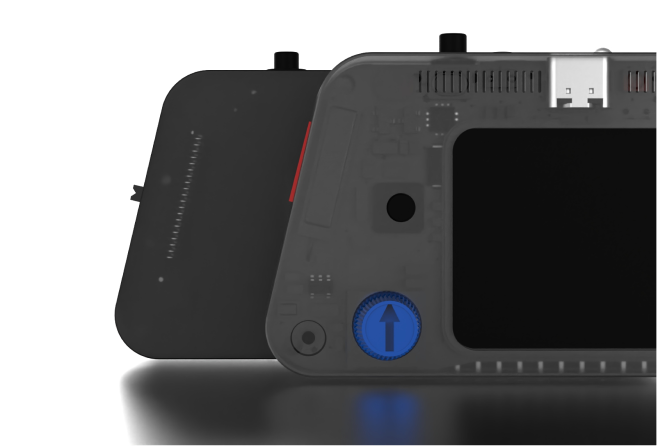

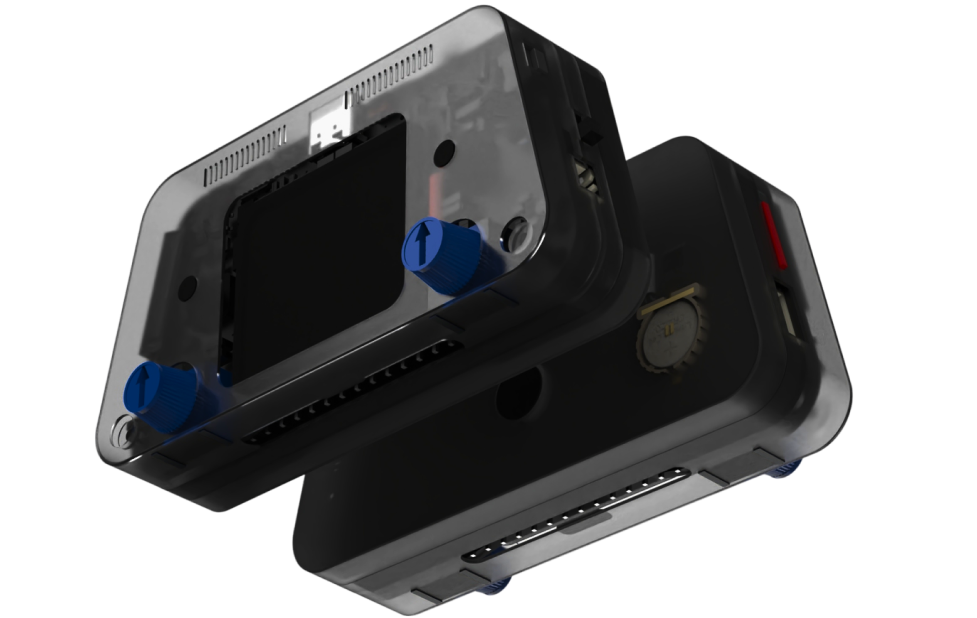

product gallerySome views of the product

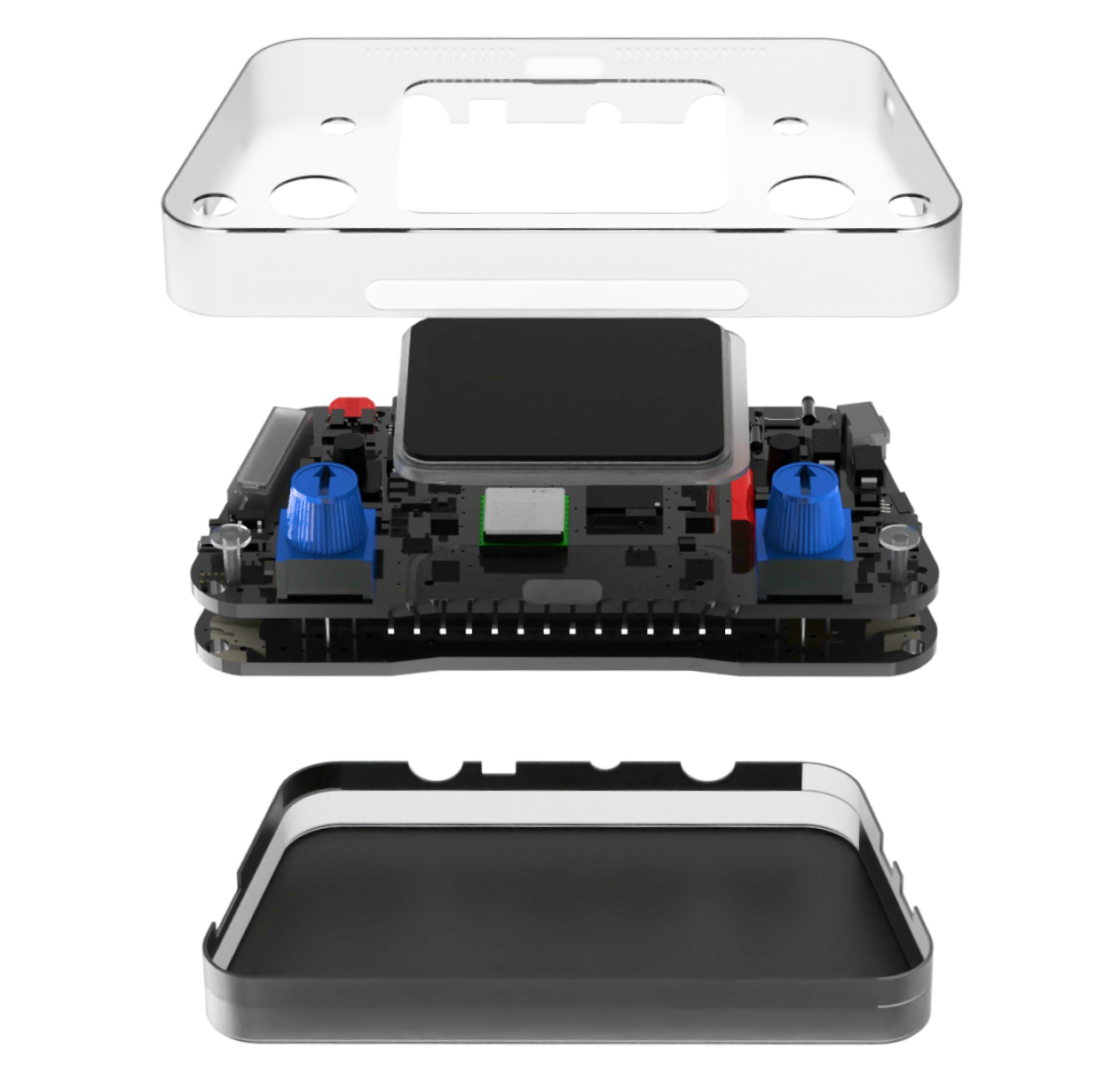

exploded technical drawingsAdvanced hardware packet on a pocket size device

Product Technical Specifications

Processing & Connectivity
  • ESP32 dual-core 240MHz processor
  • Built-in Wi-Fi & Bluetooth
  • Wireless data transfer
  • Mobile app integration
Power System
  • 1000mAh LiPo battery
  • USB LiPo charging
  • USB Type-C power & programming
  • Solar power input support
Environmental Sensing
  • Ambient pressure sensing
  • Temperature sensing
  • Humidity sensing
  • Light detection sensing
  • VOC air-quality sensing
Motion & Orientation
  • 3-axis accelerometer
  • 3-axis gyroscope
  • 3-axis magnetometer
  • Motion and orientation tracking
Optical & Interactive Sensing
  • RGB color sensing
  • Gesture detection
  • IR emitter control
  • IR receiver module
User Interface & Controls
  • 1.69-inch touch LCD display
  • Capacitive touch controls
  • Adjustable control knob
  • Physical control buttons
Audio & Feedback
  • Integrated microphone
  • Speaker module
  • Vibration motor
  • RGB status indicators
Storage & Data Logging
  • MicroSD card storage
  • Sensor data logging
  • Experiment record storage
  • Real-time data capture
Navigation & Communication
  • GPS positioning module
  • Sub-GHz wireless transceiver
  • Long-range telemetry up to ~1km LOS
  • Mobile app connectivity
Expansion & Payloads
  • Quick payload connector
  • Exposed I/O communication pins
  • External sensor integration
  • Custom hardware expansion
Timing & System Monitoring
  • Real-time clock (RTC)
  • Backup battery support
  • Power status indicators
  • Operational monitoring LEDs

how it worksFrom Setup to Deployment with PocketSAT ORION

PocketSAT is designed to simplify experimentation, data collection, and technology exploration. From quick setup and wireless configuration to real-time sensing, communication, and analysis, every subsystem is engineered to help users move seamlessly from concept to insight.

01
Configure & Connect

PocketSAT ORION is configured through USB Type-C, Wi-Fi, or Bluetooth connectivity. Users can customize sensor settings, display functions, wireless communication parameters, and experiment logic while the ESP32 dual-core processor manages real-time operation and control.

02
Sense & Interact

Once activated, PocketSAT ORION continuously captures environmental, motion, optical, audio, and location data through its integrated sensor suite. The touch display, gesture sensing, capacitive controls, microphone, and feedback systems provide an interactive platform for hands-on experimentation.

03
Communicate & Record

Sensor measurements are transmitted through Wi-Fi, Bluetooth, GPS-enabled services, or the Sub-GHz wireless transceiver for long-range telemetry. Simultaneously, all critical data is securely recorded to onboard MicroSD storage for future review and analysis.

04
Visualize & Explore

Live data can be viewed on the 1.69-inch touch display or through the mobile application interface. GPS positioning, real-time clock synchronization, and comprehensive sensor logging transform raw measurements into meaningful insights for learning, research, and innovation.

Explore Launchpad

applicationsDeployment Scenarios

Motion & Navigation Experiments

Utilize GPS, accelerometer, gyroscope, and magnetometer data for movement analysis, route tracking, and navigation-based applications.

Mobile Data Collection

Use GPS-enabled sensing and onboard storage to capture location-tagged datasets during field surveys, mapping exercises, and outdoor experiments.

Environmental Monitoring

Measure temperature, humidity, pressure, air quality, and light conditions in indoor and outdoor environments for climate and environmental studies.

What’s inside the box:

  1.  PocketSAT ORION
  2. Modular Casing
  3. Battery
  4. Programming Cable
  5. Expansion Cable
  6. Manual

Fun with the PocketSAT ORION module

faqEverything you need
to know about PocketSAT ORION

PocketSAT ORION is a compact sensing, communication, and experimentation platform that combines environmental sensors, motion tracking, GPS positioning, wireless connectivity, data logging, and interactive controls into a single portable device.

PocketSAT ORION is powered by an ESP32 dual-core microcontroller operating at 240MHz, providing real-time processing, wireless connectivity, and support for interactive applications and experiments.

PocketSAT ORION includes environmental, motion, optical, and interaction sensors such as temperature, humidity, pressure, light, VOC air quality, a 9-axis IMU (accelerometer, gyroscope, magnetometer), microphone, gesture detection, and IR sensing.

PocketSAT ORION is configured via USB Type-C or wirelessly using Wi-Fi and Bluetooth, allowing users to control sensor behavior, communication settings, and experiment logic through an intuitive interface.

PocketSAT ORION supports Wi-Fi and Bluetooth for short-range connectivity, Sub-GHz wireless for long-range communication (up to 1 km LOS), and GPS for location-based data tracking.

PocketSAT ORION operates on a rechargeable LiPo battery with USB charging and supports solar input for extended and off-grid usage.

All sensor data can be stored locally on a microSD card and transmitted wirelessly for real-time monitoring, logging, and analysis through a connected application.
